VHRS4

Pinnfräs HM / med hörnradie / 4-skärig
.

.
P1.1
<800N/mm2
 Stål, lågkolhaltigt
 Automatstål		 P1.2
<1000N/mm2
 Stål <0,5% C
 Stål >0,5% C, Låglegerat
 Stål >0,5% C, Låglegerat		 P1.3
<1400N/mm2
 Verktygsstål, Normal
 Stål, höglegerat m. hög hårdhet
 Stål, höglegerat m. hög brottgräns
 Rostfritt, martensitiskt 		H2.1
 42-50 HRC		 M3.1
<950N/mm2
 Rostfritt stål		 M3.2     <1250N/mm2
 Rostfritt stål, Austenitiskt, svårbearbetat
 Rostfritt stål, Duplex		 K4.1     <800N/mm2
 Gjutjärn
S6.1     <1500N/mm2
 Superlegeringar, Fe 		S6.2
<1600N/mm2
 Superlegeringar, Co		 S6.3
<1600N/mm2
 Superlegeringar, Ni		 S6.4
<1250N/mm2
 Superlegeringar, Titan
4-skär Reducering
Hörnradie		 Variabel
spiralvinkel		 TiAlN HVM
HPM		 Skafttyp
6535HA/HB		 Diameter
tolerans
e8		 Skaft
tolerans
h5		 Radiellt kast
(Run-out)
inom 0,01 mm
.

 Artikelnummer

 d
Diameter
mm		 r
Radie
mm		 d1
Skaftdiam.
mm		 L
Tot.längd
mm		 l1
Skärlängd
mm		 l2
Frilängd
mm		 a
Reduc.
mm		 z
Antal
skär		 y
Konvinkel
grader

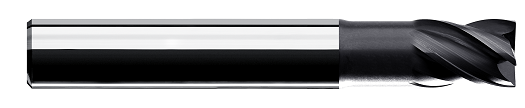

 Kort
 VHRS 4 030 051 06 03S 3 0 0,20 6 51 5,0 7,0 0,100 4 15
 VHRS 4 040 051 06 03S 4,0 0,20 6 51 6,0 9,0 0,100 4 15
 VHRS 4 050 051 06 03S 5,0 0,20 6 51 7,0 11,0 0,200 4 15

 VHRS 4 060 064 06 03 010S

 6,0 0,10 6 64 8,0 13,0 0,200 4 - Ny
 VHRS 4 060 064 06 03S 6,0 0,30 6 64 8,0 13,0 0,200 4 -
 VHRS 4 060 064 06 03 050S 6,0 0,50 6 64 8,0 13,0 0,200 4 -
 VHRS 4 060 064 06 03 100S 6,0 1,00 6 64 8,0 13,0 0,200 4 -

 VHRS 4 080 064 08 03 010S

 8,0 0,10 8 64 11,0 18,0 0,300 4 - Ny
 VHRS 4 080 064 08 03 030S 8,0 0,30 8 64 11,0 18,0 0,300 4 -
 VHRS 4 080 064 08 03 050S 8,0 0,50 8 64 11,0 18,0 0,300 4 -
 VHRS 4 080 064 08 03 100S 8,0 1,00 8 64 11,0 18,0 0,300 4 -

 VHRS 4 100 070 10 03 010S

 10,0 0,10 10 70 13,0 22,0 0,300 4 - Ny
 VHRS 4 100 070 10 03 030S 10,0 0,30 10 70 13,0 22,0 0,300 4 -
 VHRS 4 100 070 10 03 050S 10,0 0,50 10 70 13,0 22,0 0,300 4 -
 VHRS 4 100 070 10 03 100S 10,0 1,00 10 70 13,0 22,0 0,300 4 -

 VHRS 4 120 078 12 03 010S

 12,0 0,10 12 78 15,0 25,0 0,300 4 - Ny
 VHRS 4 120 078 12 03 030S 12,0 0,30 12 78 15,0 25,0 0,300 4 -
 VHRS 4 120 078 12 03 050S 12,0 0,50 12 78 15,0 25,0 0,300 4 -
 VHRS 4 120 078 12 03 100S 12,0 1,00 12 78 15,0 25,0 0,300 4 -

 VHRS 4 140 089 14 03 050S

 14,0 0,50 14 89 17,0 30,0 0,300 4 - Ny
 VHRS 4 140 089 14 03 100S 14,0 1,00 14 89 17,0 30,0 0,300 4 -

 VHRS 4 160 089 16 03 010S

 16,0 0,10 16 89 19,0 35,0 0,300 4 - Ny
 VHRS 4 160 089 16 03 050S 16,0 0,50 16 89 19,0 35,0 0,300 4 -
 VHRS 4 160 089 16 03 100S 16,0 1,00 16 89 19,0 35,0 0,300 4 -
 VHRS 4 200 102 20 03 050S 20,0 0,50 20 102 23,0 42,0 0,400 4 -
 VHRS 4 200 102 20 03 100S 20,0 1,00 20 102 23,0 42,0 0,400 4 -
 VHRS 4 250 120 25 03 050S 25,0 0,50 25 120 28,0 45,0 0,400 4 -
 VHRS 4 250 120 25 03 100S 25,0 1,00 25 120 28,0 45,0 0,400 4 -

 Artikelnummer d
Diameter
mm		 r
Radie
mm		 d1
Skaftdiam.
mm		 L
Tot.längd
mm		 l1
Skärlängd
mm		 l2
Frilängd
mm		 a
Reduc.
mm		 z
Antal
skär		 y
Konvinkel
grader

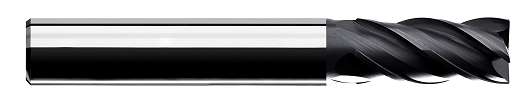

 Standard
 VHRS 4 030 051 06 03 3,0 0,20 6 51 7,0 - - 4 15
 VHRS 4 040 051 06 03 4,0 0,20 6 51 9,0 - - 4 15

 VHRS 4 060 064 06 03 010

 5,0 0,10 6 64 13,0 - - 4   Ny
 VHRS 4 050 051 06 03 5,0 0,20 6 51 11,0 - - 4 15
 VHRS 4 060 064 06 03 030 6,0 0,30 6 64 13,0 - - 4 -
 VHRS 4 060 064 06 03 050 6,0 0,50 6 64 13,0 - - 4 -
 VHRS 4 060 064 06 03 100 6,0 1,00 6 64 13,0 - - 4 -

 VHRS 4 080 064 08 03 010

 8,0 0,10 8 64 18,0 - - 4 - Ny
 VHRS 4 080 064 08 03 030 8,0 0,30 8 64 18,0 - - 4 -
 VHRS 4 080 064 08 03 050 8,0 0,50 8 64 18,0 - - 4 -
 VHRS 4 080 064 08 03 100 8,0 1,00 8 64 18,0 - - 4 -

 VHRS 4 100 070 10 03 010

 10,0 0,10 10 70 22 - - 4 - Ny
 VHRS 4 100 070 10 03 030 10,0 0,30 10 70 22,0 - - 4 -
 VHRS 4 100 070 10 03 050 10,0 0,50 10 70 22,0 - - 4 -
 VHRS 4 100 070 10 03 100 10,0 1,00 10 70 22,0 - - 4 -

 VHRS 4 120 078 12 03 010

 12,0 0,10 12 78 25,0 - - 4   Ny
 VHRS 4 120 078 12 03 030 12,0 0,30 12 78 25,0 - - 4 -
 VHRS 4 120 078 12 03 050 12,0 0,50 12 78 25,0 - - 4 -
 VHRS 4 120 078 12 03 100 12,0 1,00 12 78 25,0 - - 4 -
 VHRS 4 140 089 14 03 050 14,0 0,50 14 89 30,0 - - 4 -

 VHRS 4 140 089 14 03 100

 14,0 1,00 14 89 30,0 - - 4 - Ny

 VHRS 4 160 089 16 03 010

 16,0 0,10 16 89 35,0 - - 4 - Ny
 VHRS 4 160 089 16 03 050 16,0 0,50 16 89 35,0 - - 4 -
 VHRS 4 160 089 16 03 100 16,0 1,00 16 89 35,0 - - 4 -
 VHRS 4 200 102 20 03 050 20,0 0,50 20 102 42,0 - - 4 -
 VHRS 4 200 102 20 03 100 20,0 1,00 20 102 42,0 - - 4 -
 VHRS 4 250 120 25 03 050 25,0 0,50 25 120 28,0 - - 4 -
 VHRS 4 250 120 25 03 100 25,0 1,00 25 120 45,0 - - 4 -

Artikelnummer d
Diameter
mm		 r
Radie
mm		 d1
Skaftdiam.
mm		 L
Tot.längd
mm		 l1
Skärlängd
mm		 l2
Frilängd
mm		 a
Reduc.
mm		 z
Antal
skär		 y
Konvinkel
grader
 Med reducering
 VHRS 4 030 051 06 03L 3,0 0,20 6 51 7,0 9,0 0,100 4 15
 VHRS 4 040 051 06 03L 4,0 0,20 6 51 9,0 12,0 0,100 4 15
 VHRS 4 050 051 06 03L 5,0 0,20 6 51 11,0 15,0 0,200 4 15

 VHRS 4 060 064 06 03 010L

 6,0 0,10 6 64 13,0 18,0 0,200 4 - Ny
 VHRS 4 060 064 06 03 030L 6,0 0,30 6 64 13,0 18,0 0,200 4 -
 VHRS 4 060 064 06 03 050L 6,0 0,50 6 64 13,0 18,0 0,200 4 -
 VHRS 4 060 064 06 03 100L 6,0 1,00 6 64 13,0 18,0 0,200 4 -

 VHRS 4 080 064 08 03 010L

 8,0 0,10 8 64 18,0 24,0 0,300 4 - Ny
 VHRS 4 080 064 08 03 030L 8,0 0,30 8 64 18,0 24,0 0,300 4 -
 VHRS 4 080 064 08 03 050L 8,0 0,50 8 64 18,0 24,0 0,300 4 -
 VHRS 4 080 064 08 03 100L 8,0 1,00 8 64 18,0 24,0 0,300 4 -

 VHRS 4 100 070 10 03 010L

 10,0 0,10 10 70 22,0 30,0 0,300 4 - Ny
 VHRS 4 100 070 10 03 030L 10,0 0,30 10 70 22,0 30,0 0,300 4 -
 VHRS 4 100 070 10 03 050L 10,0 0,50 10 70 22,0 30,0 0,300 4 -
 VHRS 4 100 070 10 03 100L 10,0 1,00 10 70 22,0 30,0 0,300 4 -

 VHRS 4 120 083 12 03 010L

 12,0 0,10 12 83 25,0 36,0 0,300 r - Ny
 VHRS 4 120 083 12 03 030L 12,0 0,30 12 78 25,0 36,0 0,300 4 - Ny
 VHRS 4 120 083 12 03 050L 12,0 0,50 12 83 25,0 36,0 0,300 4 - Ny
 VHRS 4 120 083 12 03 100L 12,0 1,00 12 83 25,0 36,0 0,300 4 - Ny

 VHRS 4 120 102 12 03 010L

 12,0 0,10 12 102 25,0 36,0 0,300 4 - Ny

 VHRS 4 120 102 12 03 030L

 12,0 0,30 12 102 25,0 36,0 0,300 4 - Ny

 VHRS 4 120 102 12 03 050L

 12,0 0,50 12 102 25,0 36,0 0,300 4 - Ny

 VHRS 4 120 102 12 03 100L

 12,0 1,00 12 102 25,0 36,0 0,300 4 - Ny
 VHRS 4 140 102 14 03 050L 14,0 0,50 14 102 30,0 42,0 0,300 4 - Ny

 VHRS 4 140 102 14 03 100L

 14,0 1,00 14 102 30,0 42,0 0,300 4 - Ny

 VHRS 4 160 102 16 03 010L

 16,0 0,10 16 102 35,0 48,0 0,300 4 - Ny
 VHRS 4 160 089 16 03 050L 16,0 0,50 16 89 35,0 48,0 0,300 4 -
 VHRS 4 160 089 16 03 100L 16,0 1,00 16 89 35,0 48,0 0,300 4 -

 VHRS 4 160 102 16 03 050L

 16,0 0,50 16 102 35,0 48,0 0,300 4 - Ny

 VHRS 4 160 102 16 03 100L

 16,0 1,00 16 102 35,0 48,0 0,300 4 - Ny
 VHRS 4 200 102 20 03 050L 20,0 0,50 20 102 42,0 60,0 0,300 4 -
 VHRS 4 200 102 20 03 100L 20,0 1,00 20 102 42,0 60,0 0,300 4 -

 VHRS 4 200 125 20 03 050L

 20,0 0,50 20 125 42,0 60,0 0,300 4 - Ny

 VHRS 4 200 125 20 03 100L

 20,0 1,00 20 125 42,0 60,0 0,300 4 - Ny

 VHRS 4 250 131 25 03 050L

 25,0 0,50 25 131 45,0 75,0 0,400 4 - Ny
 VHRS 4 250 131 25 03 100L 25,0 1,00 25 131 45,0 75,0 0,400 4 -

.

Beställ produktkatalog för utförliga skärdatarekommendationer.
.
