| CH | Fasfräs HM / 3/4/5/6-skärig / 60-90-120 grader / TiAlN |
| Belagda fasfräsar |
| . |
|
. |
| . |
|
P1.1
<800N/mm2 Stål, lågkolhaltigt Automatstål |
P1.2
<1000N/mm2 Stål <0,5% C Stål >0,5% C, Låglegerat Stål >0,5% C, Låglegerat |
P1.3
<1400N/mm2 Verktygsstål, Normal Stål, höglegerat m. hög hårdhet Stål, höglegerat m. hög brottgräns Rostfritt, martensitiskt |
H2.1
42-50 HRC |
H2.2
50-55 HRC |
H2.3
55-70 HRC |
M3.1
<950N/mm2 Rostfritt stål |
M3.2
<1250N/mm2 Rostfritt stål, Austenitiskt, svårbearbetat Rostfritt stål, Duplex |
K4.1
<800N/mm2 Gjutjärn |
|
N5.1 Aluminium, <5% kisel |
N5.2 Aluminium, >5% kisel |
N5.3
Koppar Kopparlegeringar |
N5.4 Syntetmaterial |
N5.5 Kompositmaterial, CFK-GFK |
N5.6 Grafit |
S6.1
<1500N/mm2 Superlegeringar, Fe |
S6.2
<1600N/mm2 Superlegeringar, Co |
S6.3
<1600N/mm2 Superlegeringar, Ni |
|
S6.4
<1250N/mm2 Superlegeringar, Titan |
||||||||
| 3-6 skär |
0 gr. spiralvinkel |
TiAlN |
Skafttyp 6535HA/HB |
Diameter tolerans e8 |
Skaft tolerans h5 |
Radiellt kast (Run-out) inom 0,01 mm |
|

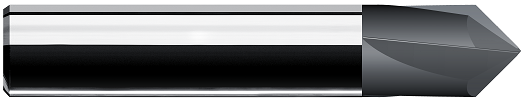

Fasfräs HM / 60 grader / TiAlN |
| Artikelnummer |
d Diameter mm |
d1 Skaft- diam. mm |
l Tot. längd mm |
l1 Skär- längd mm |
l2 Reduc. mm |
Z Antal skär |
||
| CH3- 1,0x39-60 grader | 1,0 | 1 | 39 | 0,8 | 3 | |||
| CH3- 2,0x39-60 grader | 2,0 | 2 | 39 | 1,7 | 3 | |||
| CH3- 3,0x39-60 grader | 3,0 | 3 | 39 | 2,6 | 3 | |||
| CH4- 4,0x51-60 grader | 4,0 | 4 | 51 | 3,5 | 4 | |||
| CH4- 6,0x64-60 grader | 6,0 | 6 | 64 | 5,2 | 4 | |||
| CH5- 6,0x64-60 grader | 6,0 | 6 | 64 | 5,2 | 5 | Ny | ||
| CH4- 8,0x64-60 grader | 8,0 | 8 | 64 | 6,9 | 4 | |||
| CH5- 8,0x64-60 grader | 8,0 | 8 | 64 | 6,9 | 5 | |||
| CH4-10,0x70-60 grader | 10,0 | 10 | 70 | 8,7 | 4 | |||
| CH6-10,0x70-60 grader | 10,0 | 10 | 70 | 8,7 | 6 | |||
| CH4-12,0x78-60 grader | 12,0 | 12 | 78 | 10,4 | 4 | |||
| CH6-12,0x78-60 grader | 12,0 | 12 | 78 | 10,4 | 6 | |||
| CH6-16,0x89-60 grader | 16,0 | 16 | 89 | 13,8 | 6 | |||
| Kan erhållas med Weldon från 6,0 mm skaft |
| . |
|
Fasfräs HM / 90 grader / TiAlN |
| Artikelnummer |
d Diameter mm |
d1 Skaft- diam. mm |
l Tot. längd mm |
l1 Skär- längd mm |
l2 Reduc. mm |
Z Antal skär |
||
| CH3- 1,0x39-90 grader | 1,0 | 1 | 39 | 0,5 | 3 | |||
| CH3- 2,0x39-90 grader | 2,0 | 2 | 39 | 1,0 | 3 | |||
| CH3- 3,0x39-90 grader | 3,0 | 3 | 39 | 1,5 | 3 | |||
| CH4- 4,0x51-90 grader | 4,0 | 4 | 51 | 2,0 | 4 | |||
| CH4- 6,0x64-90 grader | 6,0 | 6 | 64 | 3,0 | 4 | |||
| CH5- 6,0x64-90 grader | 6,0 | 6 | 64 | 3,0 | 5 | Ny | ||
| CH4- 8,0x64-90 grader | 8,0 | 8 | 64 | 4,0 | 4 | |||
| CH5- 8,0x64-90 grader | 8,0 | 8 | 64 | 4,0 | 5 | |||
| CH4-10,0x70-90 grader | 10,0 | 10 | 70 | 5,0 | 4 | |||
| CH6-10,0x70-90 grader | 10,0 | 10 | 70 | 5,0 | 6 | |||
| CH4-12,0x78-90 grader | 12,0 | 12 | 78 | 6,0 | 4 | |||
| CH6-12,0x78-90 grader | 12,0 | 12 | 78 | 6,0 | 6 | |||
| CH6-16,0x92-90 grader | 16,0 | 16 | 89 | 8,0 | 6 | |||
| CH6-20,0x104-90 grader | 20,0 | 20 | 104 | 10,0 | 6 | |||
| Kan erhållas med Weldon från 6,0 mm skaft |
| . |
|
Fasfräs HM / 120 grader / TiAlN |
| Artikelnummer |
d Diameter mm |
d1 Skaft- diam. mm |
l Tot. längd mm |
l1 Skär- längd mm |
l2 Reduc. mm |
Z Antal skär |
||
| CH3- 1,0x39-120 grader | 1,0 | 1 | 39 | 0,2 | 3 | |||
| CH3- 2,0x39-120 grader | 2,0 | 2 | 39 | 0,5 | 3 | |||
| CH3- 3,0x39-120 grader | 3,0 | 3 | 39 | 0,8 | 3 | |||
| CH4- 4,0x51-120 grader | 4,0 | 4 | 51 | 1,1 | 4 | |||
| CH4- 6,0x64-120 grader | 6,0 | 6 | 64 | 1,7 | 4 | |||
| CH5- 6,0x64-120 grader | 6,0 | 6 | 64 | 1,7 | 5 | Ny | ||
| CH4- 8,0x64-120 grader | 8,0 | 8 | 64 | 2,3 | 4 | |||
| CH5- 8,0x64-120 grader | 8,0 | 8 | 64 | 2,3 | 5 | |||
| CH4-10,0x70-120 grader | 10,0 | 10 | 70 | 2,8 | 4 | |||
| CH6-10,0x70-120 grader | 10,0 | 10 | 70 | 2,8 | 6 | |||
| CH4-12,0x78-120 grader | 12,0 | 12 | 78 | 3,4 | 4 | |||
| CH6-12,0x78-120 grader | 12,0 | 12 | 78 | 3,4 | 6 | |||
| CH6-16,0x92-120 grader | 16,0 | 16 | 89 | 4,6 | 6 | |||
| Kan erhållas med Weldon från 6,0 mm skaft |
| . |
| Pristillägg för Weldon |
|
| . |
