N5.1 Aluminium, <5% kisel |
N5.2 Aluminium, >5% kisel |
N5.3
Koppar Kopparlegeringar |
N5.4 Syntetmaterial |
N5.5 Kompositmaterial, CFK-GFK |

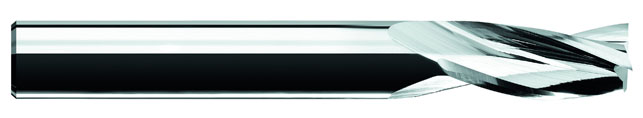

||||
| 2-skär | Hörnradie |
20 grader spiralvinkel |
Obelagd |
HVM HPM |
Skafttyp 6535HA |
Diameter e8 |
Skaft tolerans h5 |
Radiellt kast (Run-out) 0,01 mm |
| . |
|
Artikelnummer |
d Diameter mm |
r Radie mm |
d1 Skaftdiam mm |
L Tot.längd mm |
L1 Skärlängd mm |
L2 Frilängd mm |
a Reduc. mm |
Z Antal skär |
y Konvinkel grader |
|
|
Standard |
||||||||||
| VHLA 3 040 064 06 15 | 4,0 | - | 6 | 64 | 11 | - | - | 3 | 15 | |
| VHLA 3 050 064 06 15 | 5,0 | - | 6 | 64 | 13 | - | - | 3 | 15 | |
| VHLA 3 060 064 06 15 | 6,0 | - | 6 | 64 | 13 | - | - | 3 | - | |
| VHLA 3 080 064 08 15 | 8,0 | - | 8 | 64 | 19 | - | - | 3 | - | |
| VHLA 3 100 070 10 15 | 10,0 | - | 10 | 70 | 22 | - | - | 3 | - | |
| VHLA 3 120 078 12 15 | 12,0 | - | 12 | 78 | 26 | - | - | 3 | - | |
| VHLA 3 160 089 16 15 | 16,0 | - | 16 | 89 | 32 | - | - | 3 | - | |
| VHLA 3 200 102 20 15 | 20,0 | - | 20 | 102 | 38 | - | - | 3 | - | |
| VHLA 3 250 120 25 15 | 25,0 | - | 25 | 120 | 45 | - | - | 3 | - | |
| Artikelnummer |
d Diameter mm |
r Radie mm |
d1 Skaftdiam mm |
L Tot.längd mm |
L1 Skärlängd mm |
L2 Frilängd mm |
a Reduc. mm |
Z Antal skär |
y Konvinkel grader |
|
|
3xD |
||||||||||
| VHLA 3 040 064 06 15 L012 | 4,0 | - | 6 | 64 | 6,0 | 12,0 | - | 3 | 15 | |
| VHLA 3 050 064 06 15 L015 | 5,0 | - | 6 | 64 | 7,0 | 15,0 | - | 3 | 15 | |
| VHLA 3 060 064 06 15 L018 | 6,0 | - | 6 | 64 | 9,0 | 18,0 | - | 3 | - | |
| VHLA 3 080 064 08 15 L024 | 8,0 | - | 8 | 64 | 12,0 | 24,0 | - | 3 | - | |
| VHLA 3 100 072 10 15 L030 | 10,0 | - | 10 | 72 | 15,0 | 30,0 | - | 3 | - | |
| VHLA 3 120 083 12 15 L036 | 12,0 | - | 12 | 83 | 18,0 | 36,0 | - | 3 | - | |
| VHLA 3 160 100 16 15 L048 | 16,0 | - | 16 | 100 | 24,0 | 48,0 | - | 3 | - | |
| VHLA 3 200 110 20 15 L060 | 20,0 | - | 20 | 110 | 30,0 | 60,0 | - | 3 | - | |
| Artikelnummer |
d Diameter mm |
r Radie mm |
d1 Skaftdiam mm |
L Tot.längd mm |
L1 Skärlängd mm |
L2 Frilängd mm |
a Reduc. mm |
Z Antal skär |
y Konvinkel grader |
|
| 5xD | ||||||||||
| VHLA 3 040 064 06 15 L020 | 4,0 | - | 6 | 64 | 6,0 | 20,0 | - | 3 | 15 | |
| VHLA 3 050 064 06 15 L025 | 5,0 | - | 6 | 64 | 7,0 | 25,0 | - | 3 | 15 | |
| VHLA 3 060 072 06 15 L030 | 6,0 | - | 6 | 72 | 9,0 | 30,0 | - | 3 | - | |
| VHLA 3 080 078 08 15 L040 | 8,0 | - | 8 | 78 | 12,0 | 40,0 | - | 3 | - | |
| VHLA 3 100 092 10 15 L050 | 10,0 | - | 10 | 92 | 15,0 | 50,0 | - | 3 | - | |
| VHLA 3 120 100 12 15 L060 | 12,0 | - | 12 | 100 | 18,0 | 60,0 | - | 3 | - | |
| VHLA 3 160 130 16 15 L080 | 16,0 | - | 16 | 130 | 24,0 | 80,0 | - | 3 | - | |
| VHLA 3 200 150 20 15 L100 | 20,0 | - | 20 | 150 | 30,0 | 100,0 | - | 3 | - | |
